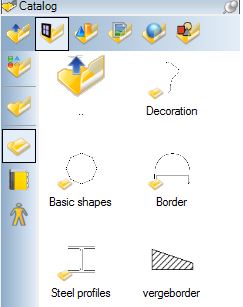

Using the 2D polygon tool create a 2D Profile of the verge and save this in the Profile catalogue (located at
C:\Program Files\Visual Building Premium 5.2.1.0 \AEC\Profiles) Use the line tool to draw the path of the verge, in this case along the wall line. Then use the Construction - Sweep Solid - Select Path Contour tool The above example exaggerates the solution with limited number of wall sections. |
|
I have created a Construction element extrusion Solid from a on plane drawn from a Polygon based Surface element. The result is shown as the grassy area next to the fence. (surface element, underneath) I now need to turn this grassy area effectively into a curved wedge, with high side following the contour of the fence, to reflect a sloping border.
What would recommend as the best way to achieve this ? Gerry D via email |
